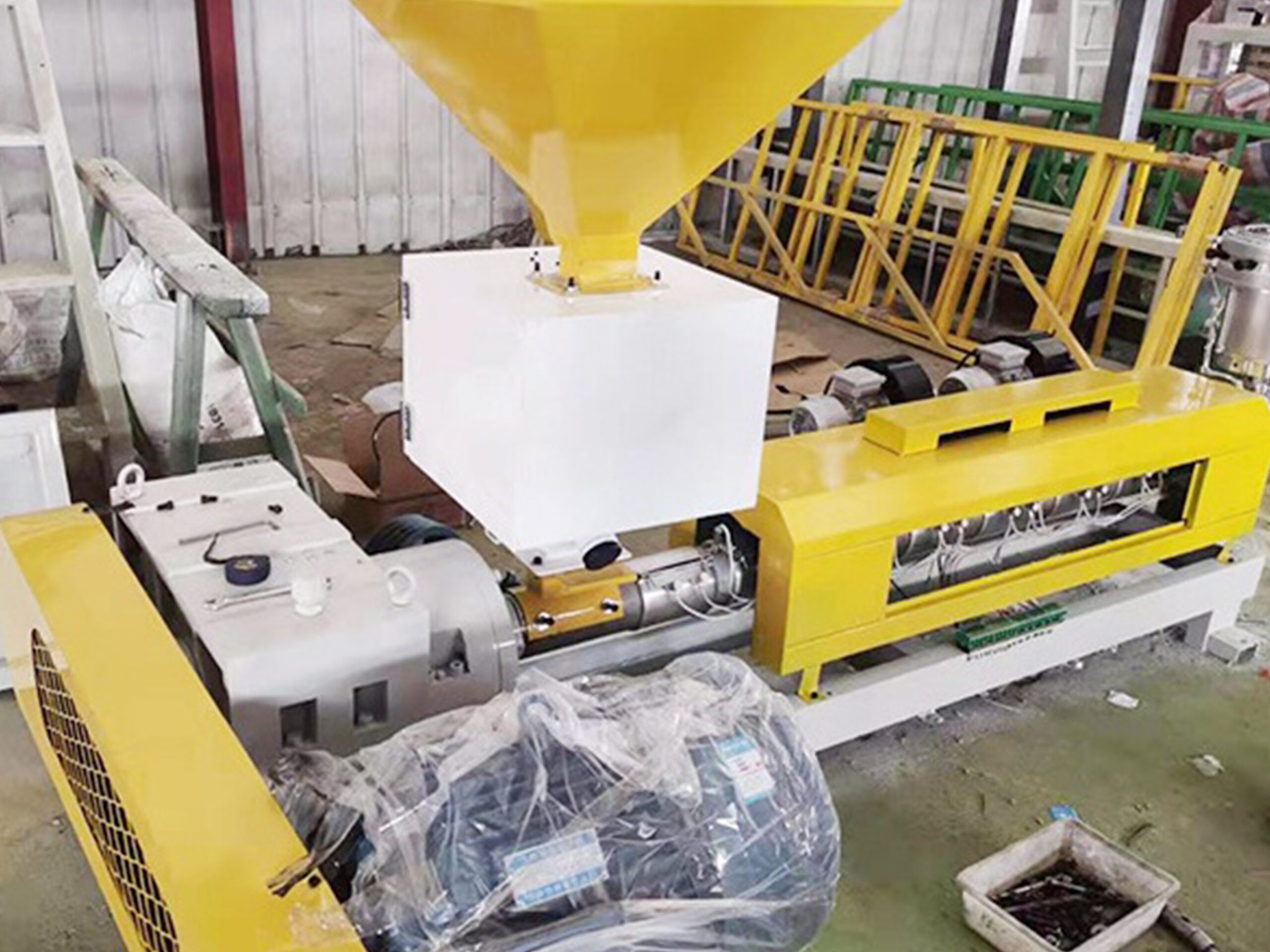

ABA Blowing Film Machine Double air Ring PE Extruder Machine

Model:TK-ABA-700  TK-ABA-900  TK-ABA-1100
Suitable Material:HDPE,LDPE,LLDPE,PLA+PBAT
Film Width:100-600mm 400-800mm 500-1000mm
Film Thickness:0.005-0.10mm
Max.Output:HD 80kg 100kg 120kg       LD 95kg 115kg 135kg

ABA Blown Film Machine:

Environmentally Friendly Operation: This film blown machine meets CE standard and is designed for environmental protection, making it a sustainable choice for businesses looking to reduce their ecological footprint.

Versatile Production Capabilities: The machine can process various types of plastics, including HDPE, LDPE, LLDPE, and biodegradable materials, allowing for the production of a wide range of packaging films.

High-Quality Output: With a maximum output of 220kg/h, this machine is suitable for medium to large-scale production, and its take-up speed can be adjusted to accommodate different requirements.

Reliable After-Sales Service: Our team of engineers provides comprehensive after-sales service, ensuring that any issues are promptly addressed and the machine operates at optimal levels.

Long-Lasting Performance: Backed by a 3-year warranty on the core components and the machine itself, this film blown machine is designed to provide reliable performance and long-term value for businesses in the food and beverage industry, including hotels, restaurants, food shops, and farms.



Main Technical Specification:

Model TK-ABA-700 TK-ABA-900 TK-ABA-1100
Suitable Material HDPE,LDPE,LLDPE,PLA+PBAT
Film Width 100-600mm 400-800mm 500-1000mm
Film Thickness 0.005-0.10mm
Max.Output HD 80kg 100kg 120kg
LD 95kg 115kg 135kg
Screw Diameter Φ45*2 Φ50*2 Φ60*2
Screw L/D Lenth 30:1
Cylinder Cooling 550w*6
Main Motor 15kw*2 18.5kw*2 22kw*2
Average Power Consume 28kw 32kw 40kw
Die Head HD 60-80mm 80-100mm 100-120mm
LD 120-150mm 150-180mm 200-220mm
Air Blower 5.5-7.5kw
Roller Width 700mm 900mm 1100mm
Effective Width 600mm 800mm 1000mm
Take-up Speed 10-140m/min
Take-up Motor 1.5kw 2.2kw
Winding Unit PLC Automatic Roll Change
Winding Speed 10-140m/min
Power Supply 380V,50HZ,3PHASE
Outline Dimension(L*W*H) 5*3.5*5.2m 5*4*5.8m 5*4.5*6.2m
Weight 4t 5t 6t
