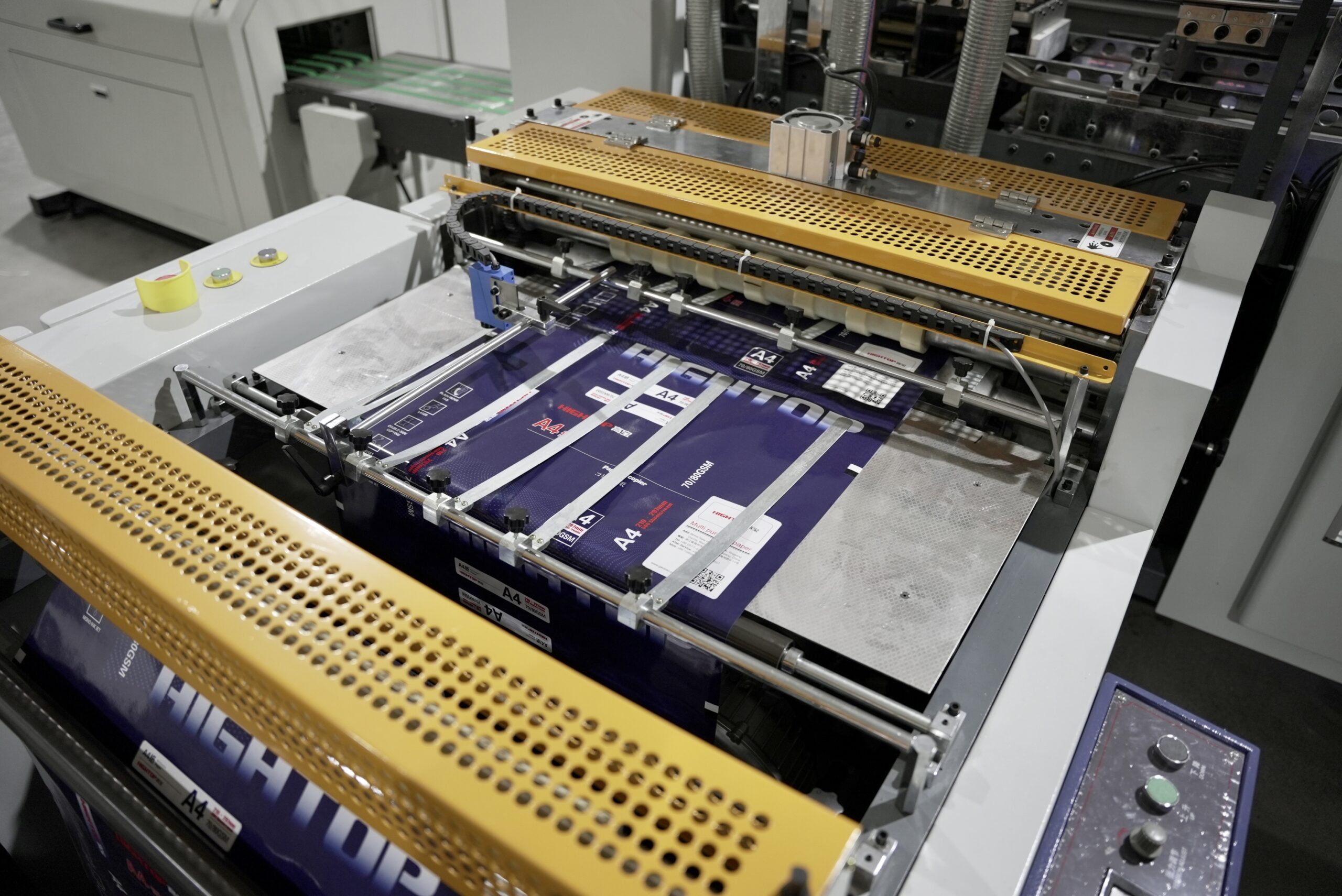

Automatic A4 Paper Cutting Packaging Machine Production Line

1.The model machine adopt the Japanese brand PLC and have intelligent tension control system.

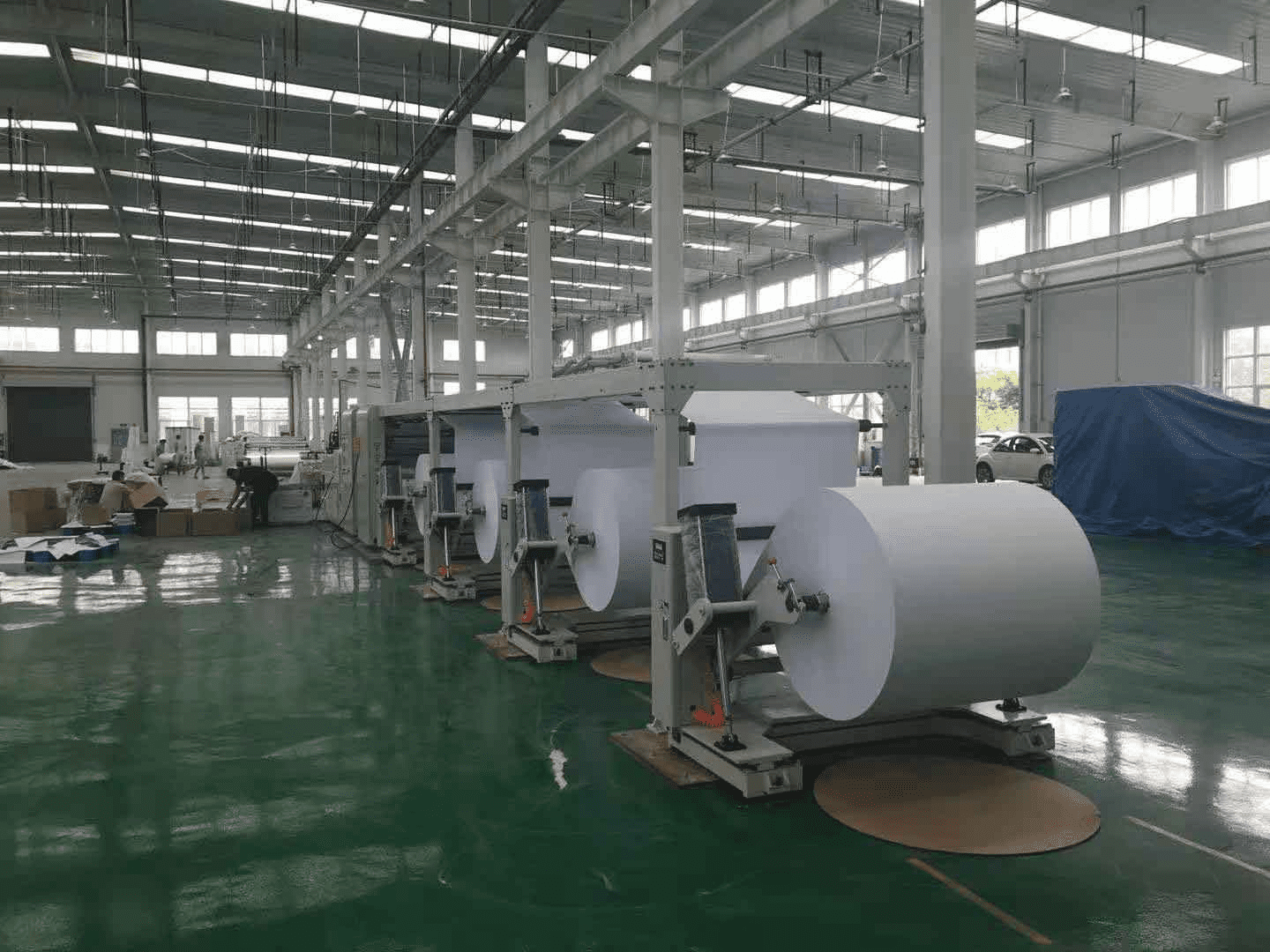

2.The paper rolls unwinder stander is separate. Automatic loading paper jumbo rolls.
3.The unwinder can automatic lift up the material rolls by the cylinder control.Saving labors
4.Automatic counting output sheets and stop machine reaching the quantity.
5.Max capacity 6 reams per minute.
6.High precision Web edge position automatic adjustment system.(EPC)
7.The machine equip with static electric canceller device to delete static in the paper

Usage:

The model machine use to cut paper jumbo roll to A4 size sheets and wrapping to reams. It is an automatic production for making A4 paper reams. There are three different capacity ,from 1.5 reams to 6 reams per minute.

Main Technical Specification:

	TK-HQ A4-1	TK-HQ A4-2	TK-HQ A4-4
Mother Roll Width	1100mm	1100mm	1100mm
Mother Roll Diameter	1400mm	1400mm	1400mm
Cutting Speed	150 cuts per minute	150 cuts per minute	150 cuts per minute
Feeding Rolls	one roll	two rolls	four rolls
Capacity	1.5 reams/min	3 reams/min	6 reams/min
Unwinder Core Size	3/6inch	3/6inch	3/6inch
GSM Range	30-450gsm	30-450gsm	30-450gsm
