Product description：

Packaging Type：wooden case

Voltage：380v/50hz

Warranty：1 Year

Weight (KG)：1600

dimension(l*w*h)：3100*1800*1600mm

key selling points：Easy to Operate

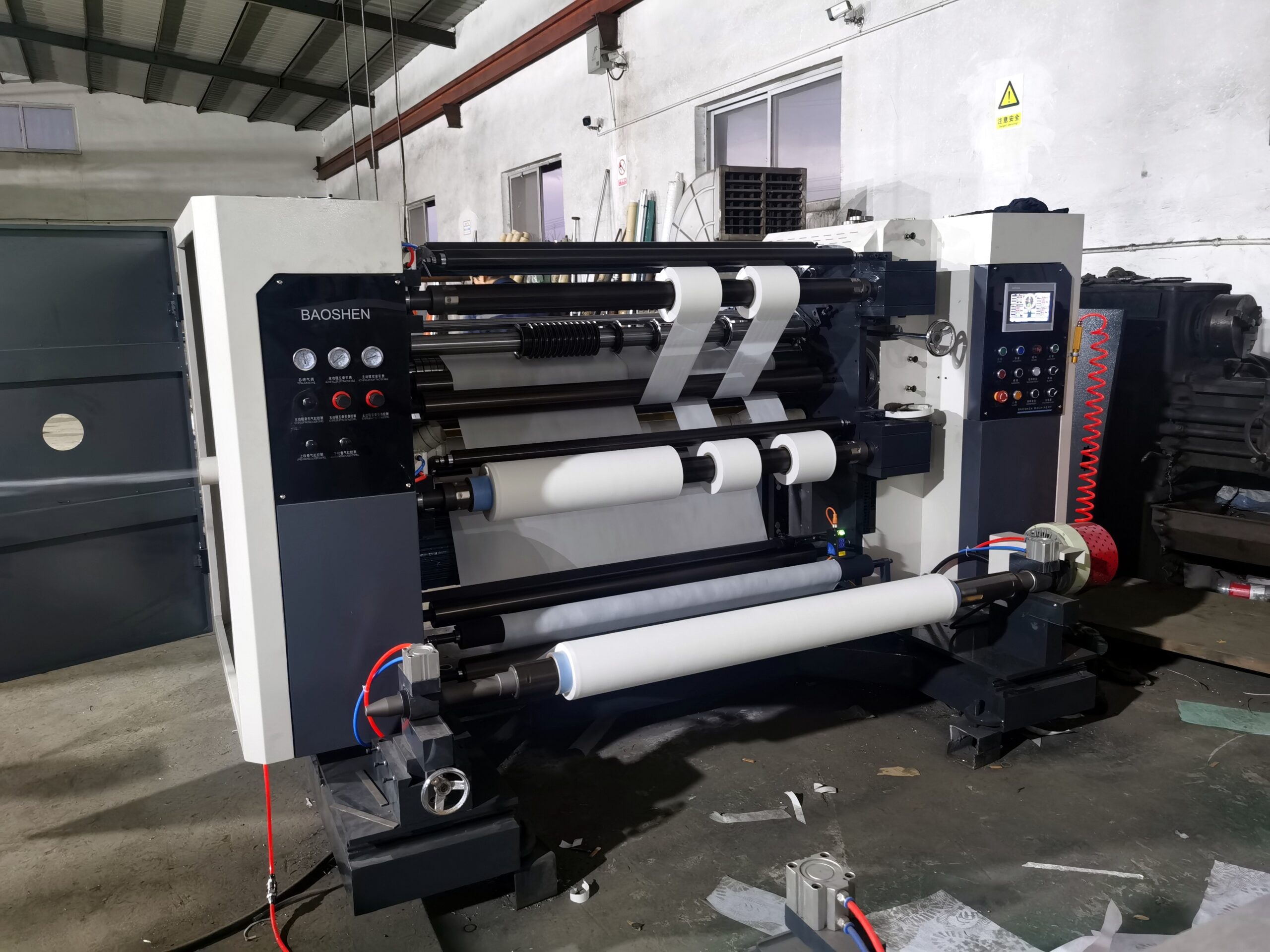

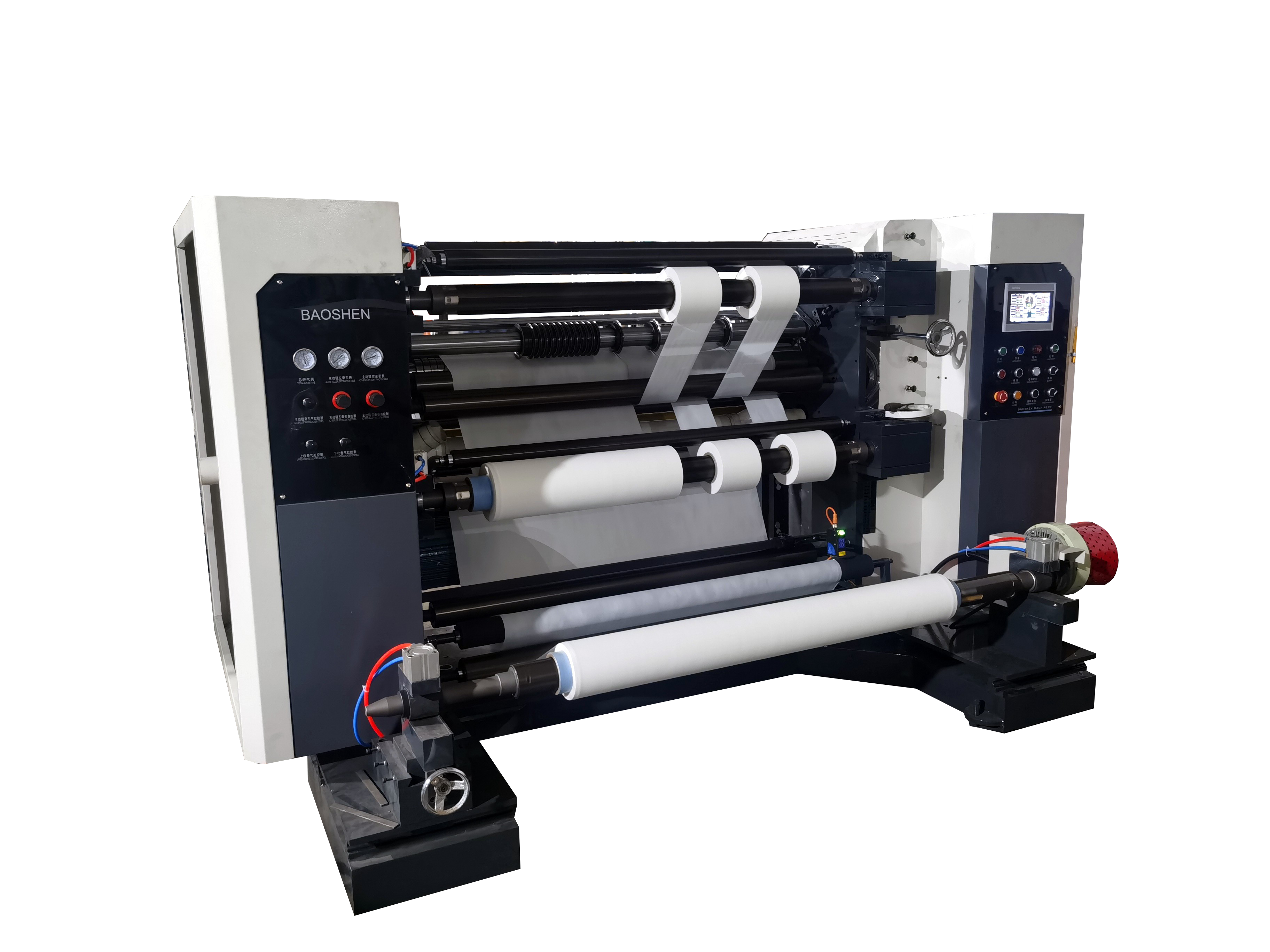

Product name：Non woven fabric slitting machine

Valid width：50-1600mm

Slitting thickness：20-300g

Mechanical speed：200m/min

Slitting speed：180m/min

Unwinding diameter：800mm

Rewinding diameter：600mm

Main Features：

1.Equipped with pneumatic shaft for unwinding and rewinding.

2.Main motor with frequency converter for speed regulation

3.Adopt magnetic brake control tensions for unwinding and rewinding.

4.The machine width and blade numbers depend on client.

Automatic loading and unloading device for unwinding (optional)

Warranty:

All new THINKI machines are covered by a comprehensive one-year warranty on all parts, giving you peace of mind in your investment.

Installation & Training:

Our expert technicians provide full installation and operator training at your facility. We supply manuals, setup videos, a training checklist, and a machine-specific operator test to ensure your team is fully prepared.
