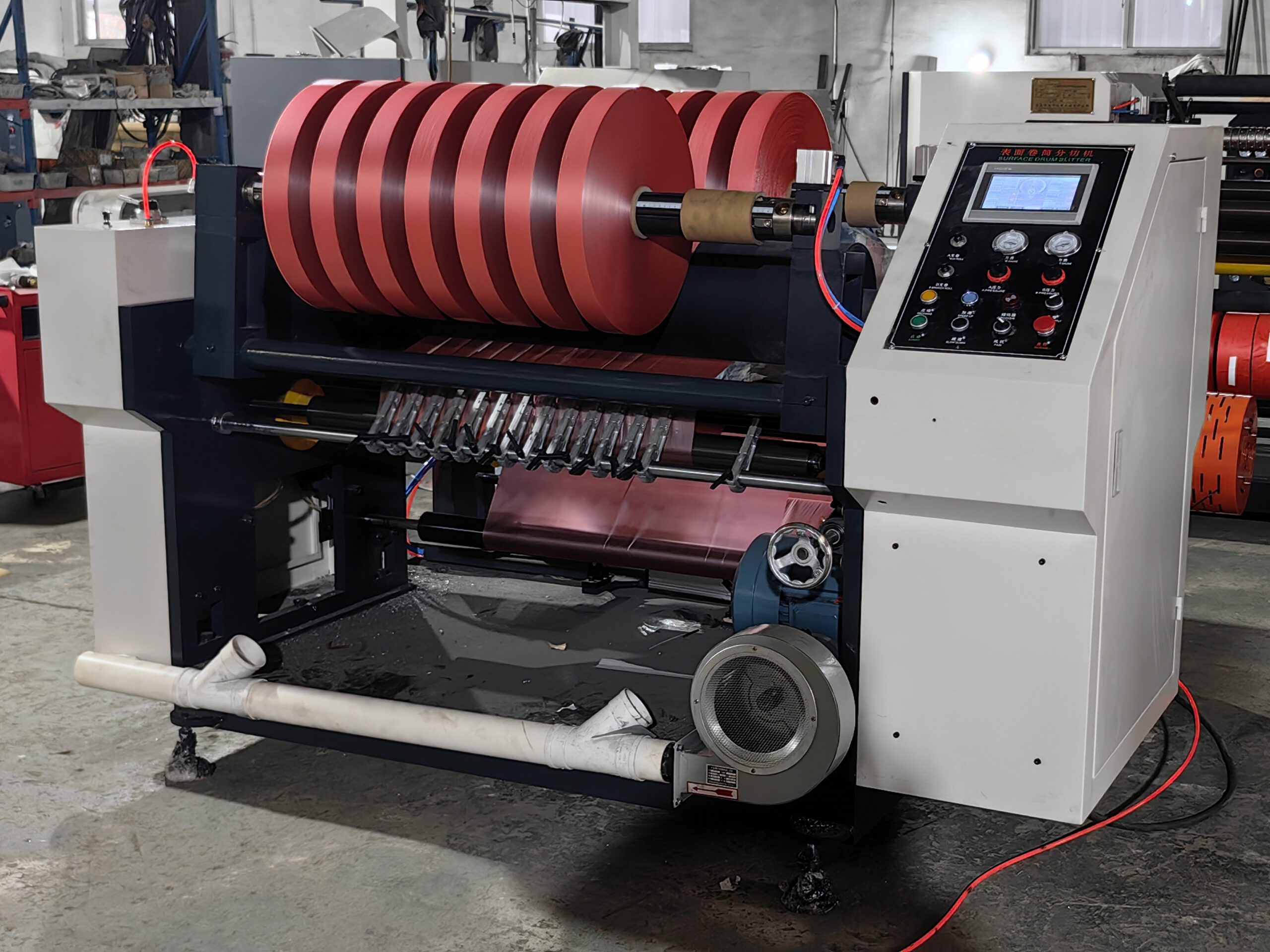

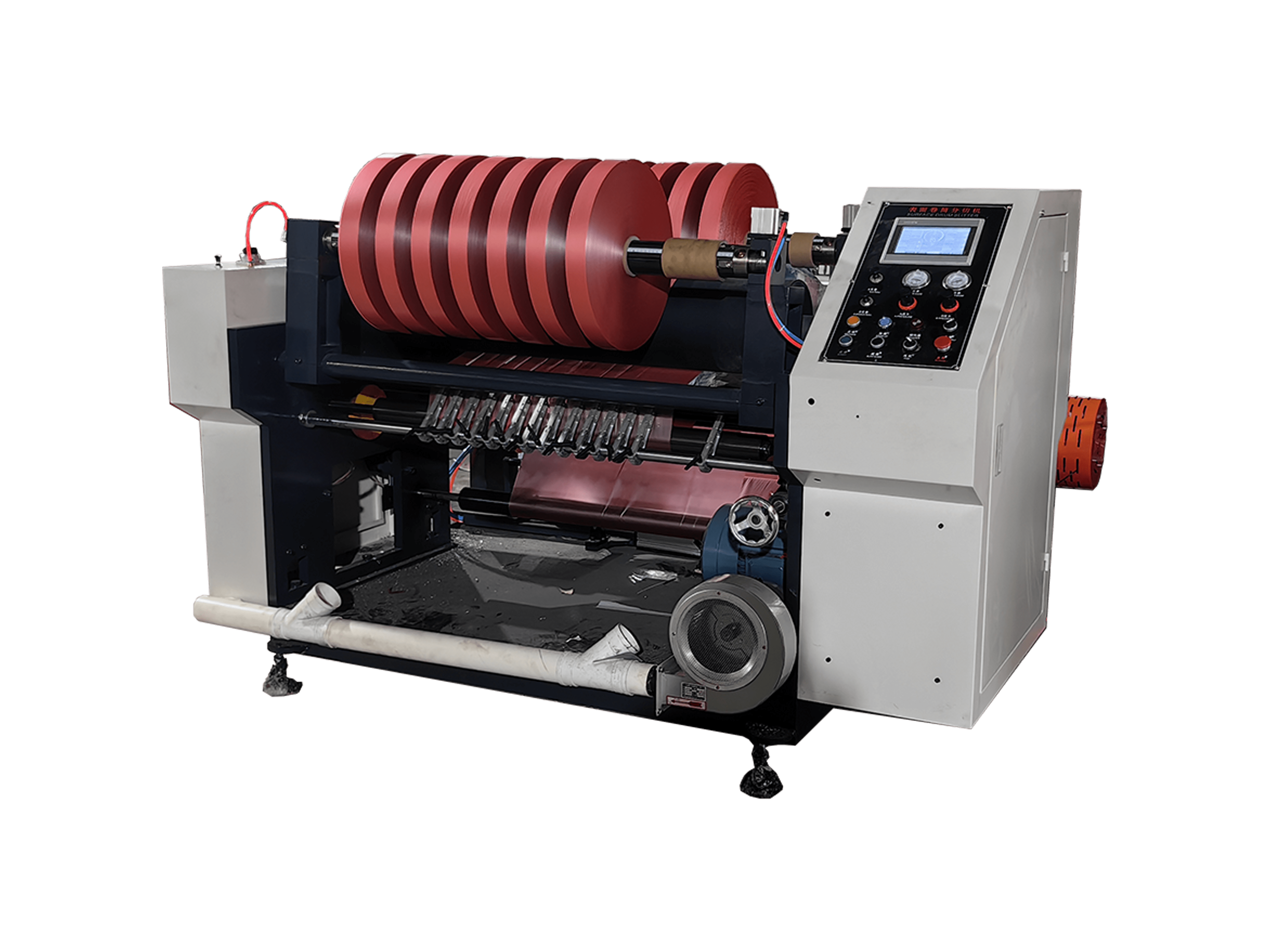

High Speed Servo Motor Surface Rewinder Slitting Machine

Model：1600
Max width of unwinding：1600mm
Max diameter of unwinding：φ1400mm
Min width of slitting：10mm
Max diameter of winding：φ800mm
Speed of slitting：350m/min
Power supply：380V/20kw
Size and Weight：5500kg/3450*3600*1650mm

Technical Parameter：

Model	TK-1600
Max width of unwinding	1600mm
Max diameter of unwinding	φ1400mm
Min width of slitting	10mm
Max diameter of winding	φ800mm
Speed of slitting	350m/min
Power supply	380V/20kw
Size and Weight	5500kg/345036001650mm

Product description：

This model slitter rewinder machine is a center and surface rewinding type slitter machine. This type slitter machine can slit and rewind minimum 10mm width Non Woven /pe / pvc/ pet film rolls. It is mainly used to slit the Non Woven/ pe / pvc/ pet film rolls to narrow width rolls. It is widely using in the products industry.
