Product Attributes：

output (kg/h) ：120 – 220

number of layers ：Single-layer

Voltage ：380V 50Hz 3Phase

plastic processed：HDPE, Polystyrene, HDPE/PP, LDPE, Lldpe, Biodegradable

weight (kg) ：3500

screw diameter (mm) ：55

place of origin ：Zhejiang, China

die size(mm)： 220 – 320 mm

dimension(l*w*h) ：6.5*3.2*6.8m

key selling points ：Eco-Friendly

video outgoing-inspection：Provided

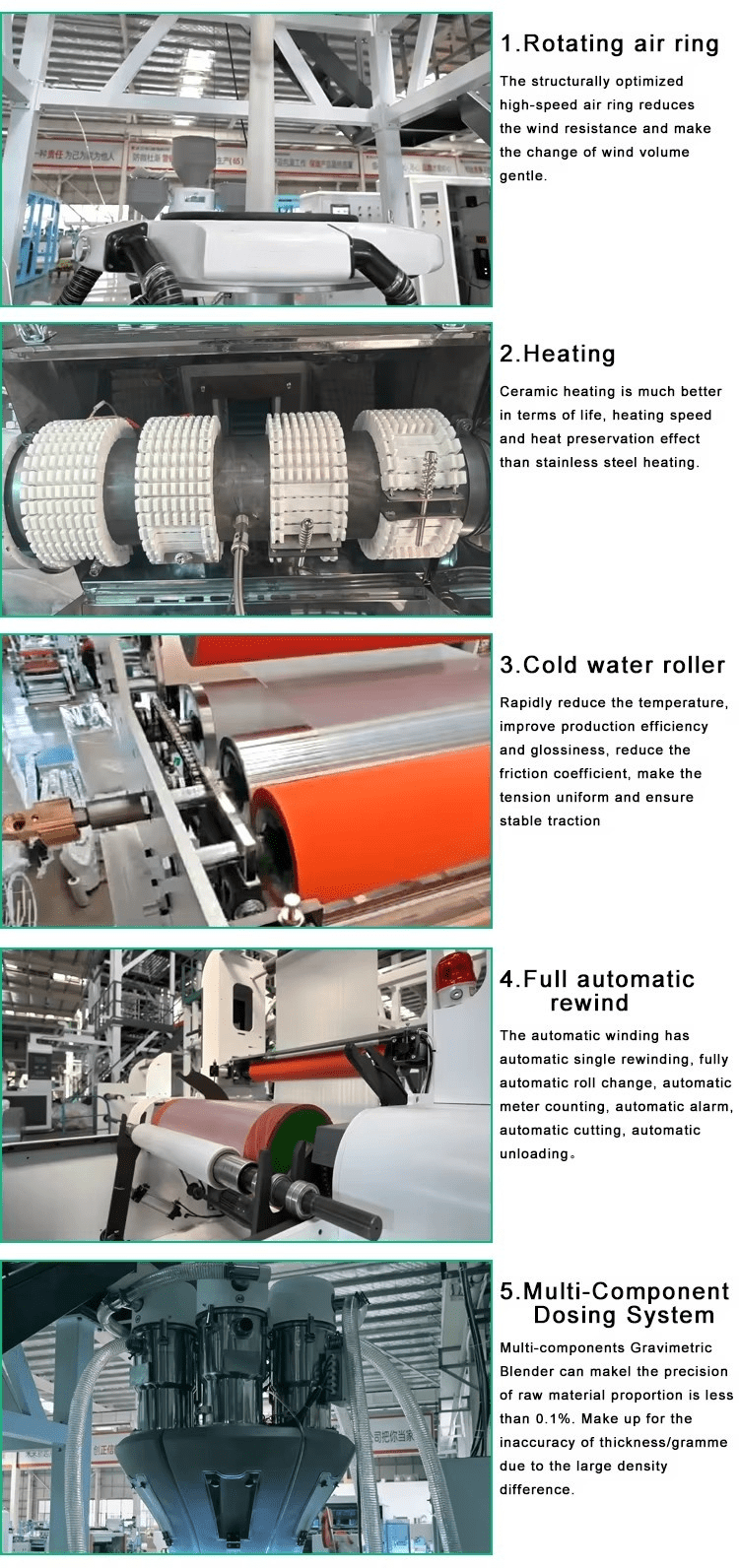

core components ：Gearbox, motor, Die head, Fequency converter, Air Blower

Screw L/D Ratio ：30:1

Screw Diameter ：55/60/65mm

Main motor ：22/30/37kw

Die head ：220/250/320mm

Material ：HDPE LDPE LLDPE

Key words： Film Blowing Machine Extruder

Use ：Packaging Film

Max.Output ：220kg/h

Take-up Speed： 10-120kg/h

Product Applications：

Environmentally Friendly Operation: This film blown machine meets CE standard and is designed for environmental protection, making it a sustainable choice for businesses looking to reduce their ecological footprint.

Versatile Production Capabilities: The machine can process various types of plastics, including HDPE, LDPE, LLDPE, and biodegradable materials, allowing for the production of a wide range of packaging films.

High-Quality Output: With a maximum output of 220kg/h, this machine is suitable for medium to large-scale production, and its take-up speed can be adjusted to accommodate different requirements.

Reliable After-Sales Service: Our team of engineers provides comprehensive after-sales service, ensuring that any issues are promptly addressed and the machine operates at optimal levels.

Long-Lasting Performance: Backed by a 3-year warranty on the core components and the machine itself, this film blown machine is designed to provide reliable performance and long-term value for businesses in the food and beverage industry, including hotels, restaurants, food shops, and farms.

Main Technical Specification:
