Technical Parameter：
| Width | Model 1300 | Correction accuracy | ±0.5mm |
| Slitting thickness | 20g-300g/m2 (depending on different raw materials) | Slitting accuracy | ±0.5mm |
| Raw material unwinding maximum diameter | Φ1400mm | speed | 200m/min |
| Raw material winding maximum diameter | Φ600mm | total power | 5kw |
| Maximum width of slitting material | 1300mm | body color | Gray, white cover (other colors optional) |
| Rolling tile inflatable shaft | Φ76mm | Adopt automatic photoelectric deviation correction | (According to different raw materials and customer specific requirements) |
| Number of reels at the same time | 2 (can be wound on a single axis) |
Performance and Features：
1.This machine adopts three-phase asynchronous motor to keep running smoothly during acceleration; (using frequency conversion speed regulation)
2. Automatic meter counting, alarm and other functions;
3. The winding adopts the structure of A and B inflatable shafts, which is convenient for loading and unloading;

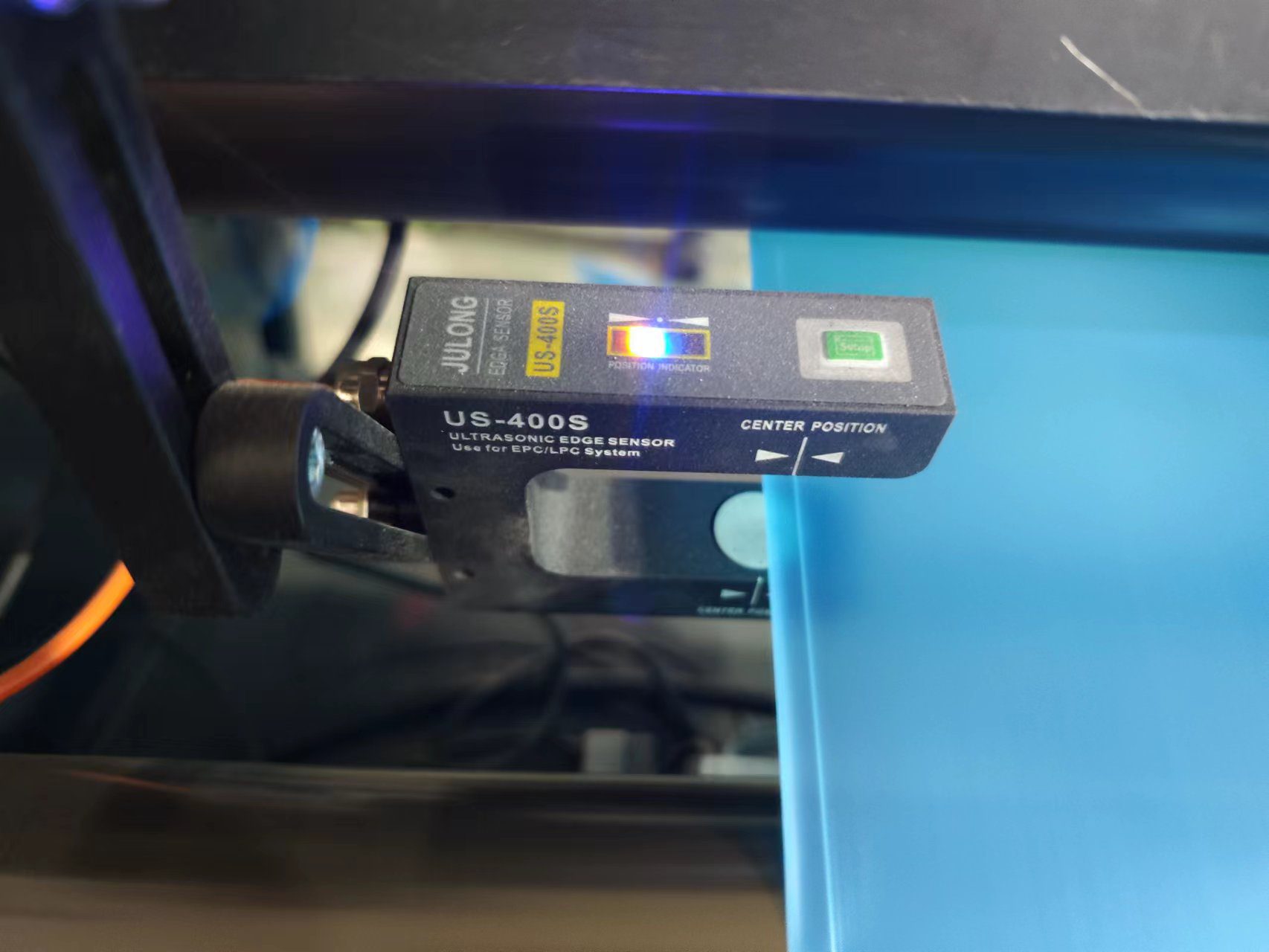

4. Unwinding adopts photoelectric automatic correction system, so that irregular materials can be cut normally
5. Flat knife slitting waste edge automatic discharge device 6. Manual feeding, inflatable shaft (key bar type) 3 inches Φ76mm.
