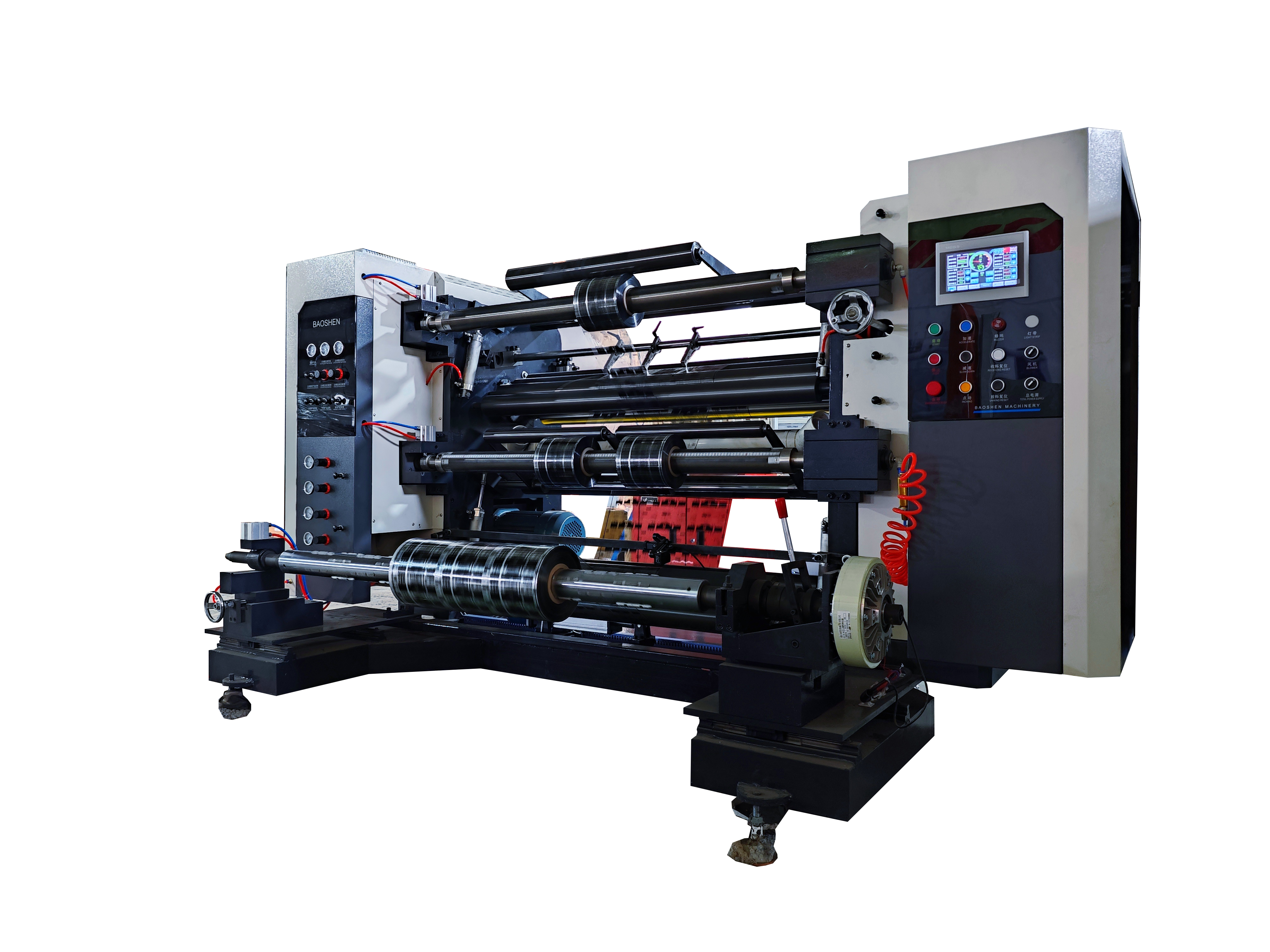

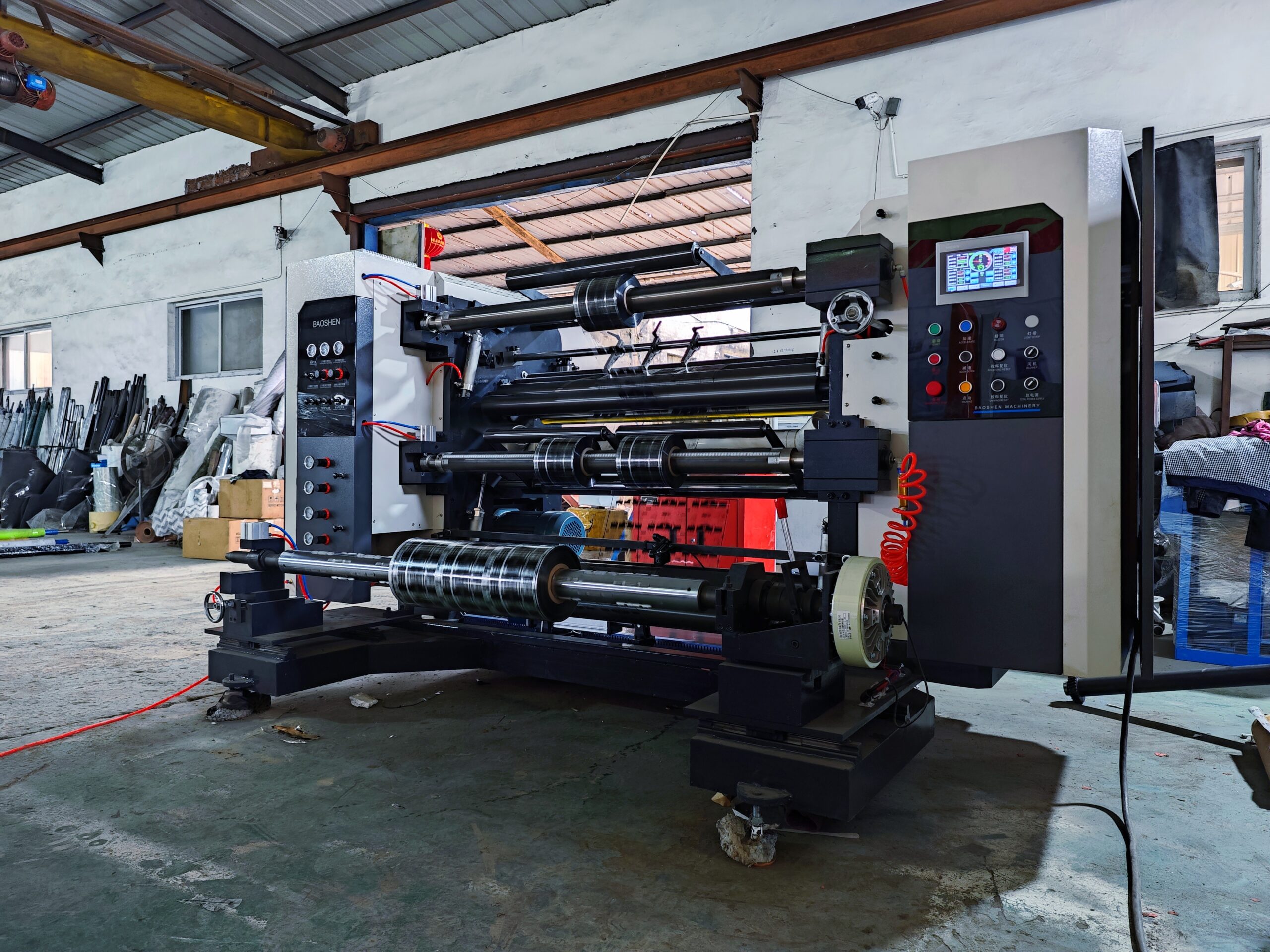

Roll to Roll Slitting Machine for plastic film BOPP PET PVC

Type：Slitting Rewinding machine

Voltage：380V

production capacity：200 m/min

Working Width：1300mm

Warranty：1 Year

Weight (KG)：1600

Application：plastic film( pvc/ pet /bopp) , paper , Nonwoven fabric

Speed：200m/min

Product description：

Model	TK-1300	TK-1600
Max width of unwinding	1300mm	1600mm
Max diameter of unwinding	φ1400mm	φ1400mm
Min width of slitting	20mm	20mm
Max diameter of winding	Φ600mm	Φ600mm
Speed of slitting	≤200m/min	≤200m/min
Power supply	380V/6kw	380V/6kw
Size and Weight	1300kg/270018501530mm	1600kg/310018501530mm

Product Application：

Slitting Machine suitable many kinds of jumbo roll materlals , such as adhesive stickers/PVC/PET/Release paper/ BOPP. This machine adopts PLC /Servo motor contro and automatic taper tension,central surface rewinding.Frequency control of motor,run smoothly in acceleration.It has the functions of automatic counting meter, automatic alam,etc . Adopt A and B pneumatic shaft structure for rewinding, chain unloading system,which is easy for unloading.It adopts ultrasonic/CCD automat edge correction adjustment system for unwinding, anomaistic materials will be easy slit, Equipped with automatic waste film blowing device. Automatic material loading by pnematic,matched with air.

Warranty:

All new THINKI machines are covered by a comprehensive one-year warranty on all parts, giving you peace of mind in your investment.

Installation & Training:

Our expert technicians provide full installation and operator training at your facility. We supply manuals, setup videos, a training checklist, and a machine-specific operator test to ensure your team is fully prepared.
