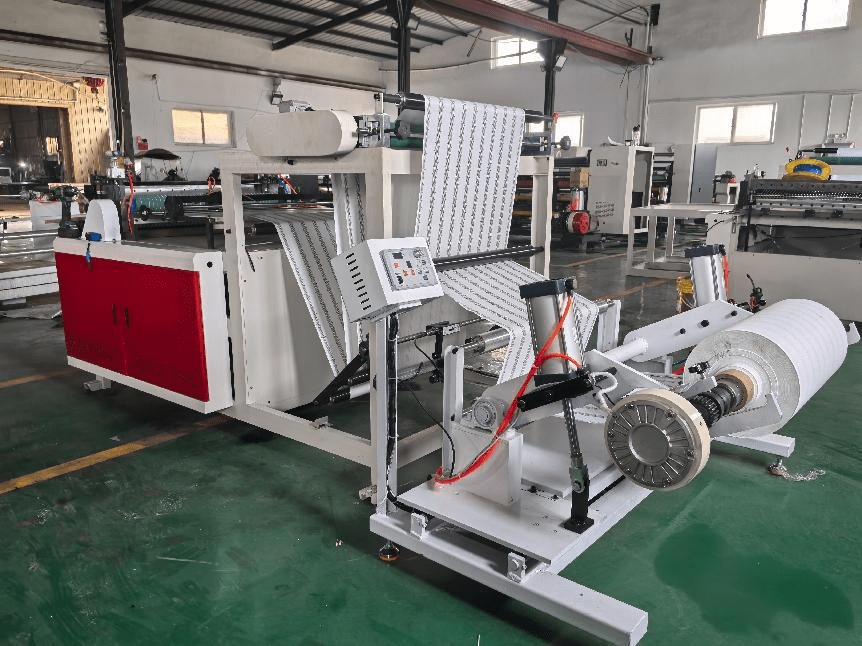

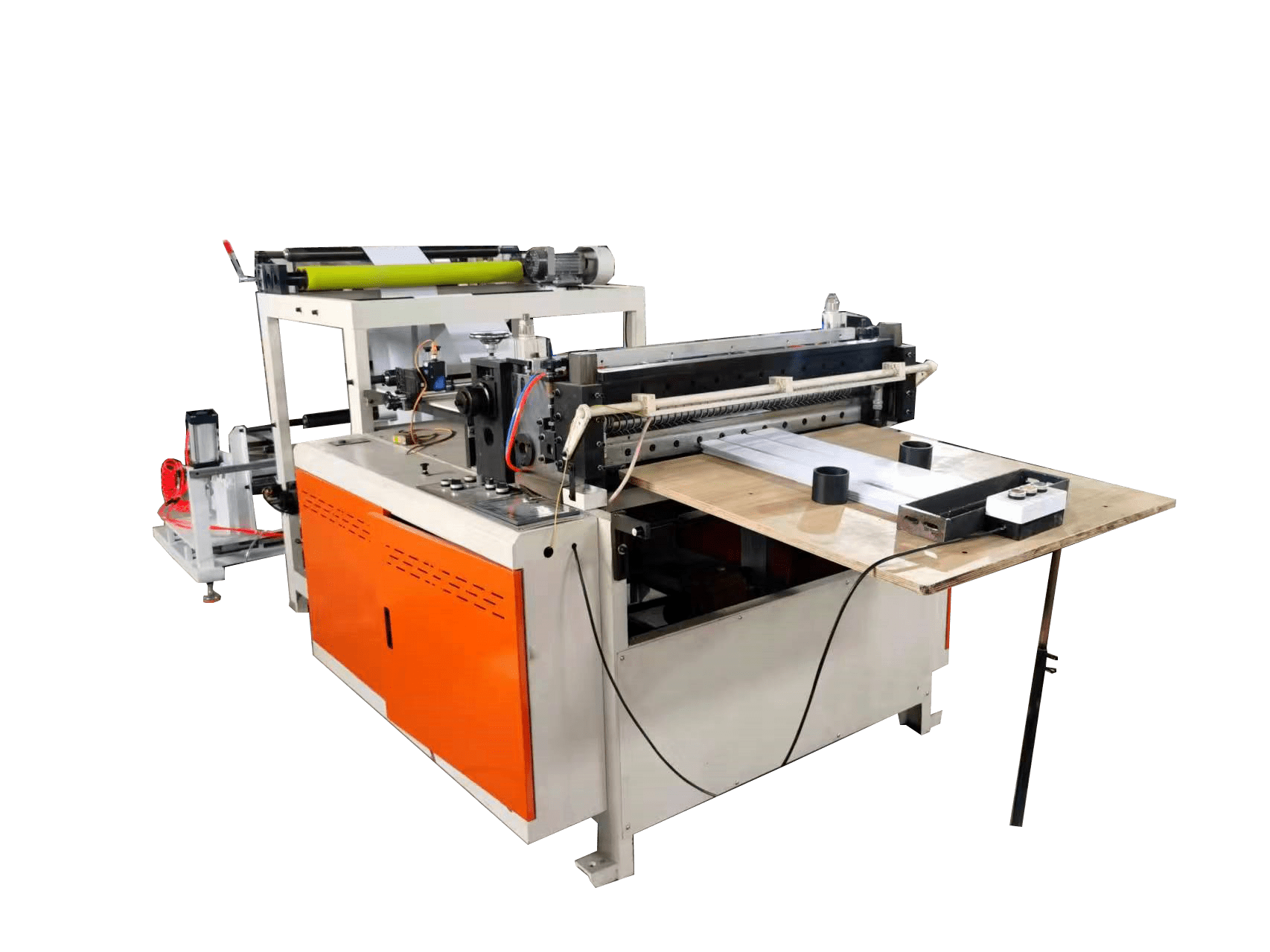

Roll To Sheet Cutter Kraft Paper Cross Cutting Machine

1. Servo motor to control the length of cutting, driving system adopt multi multi-control like startstart-over etc.

2.This machine has electric and pneumatic, easy operating, high precision in cutting, working stable, low low-noisenoise.

3.Frequency control motor, automatic counting, alarm and automatic automatic-stop, magnetic powder tension control.

4.Vertical multi multi-section cutting, waste edge is blowin g by fan automatically.

 Application:

Automatic paper cross cutting machine is suitable for cutting jumbo roll of materials, such as all kinds of papre, film, leather and so on.

Technical Parameters:

Model TK-HQ-800 TK-HQ-1100 TK-HQ-1400
Jumbo Roll Diameter 800mm Ø1400mm Ø1400mm
Max. Cutting Width 800mm 1100mm 1400mm
 Precision ±0.2mm ±0.2mm ±0.2mm
Tension cotrol (auto) magnetic powder magnetic powder magnetic powder
computerized yes yes yes
Max Cutting Speed 130times/min 150 times/min 150 times/min
 Power 4kw 6.5KW 6.5KW
 Weight 1400kg 3200KG 3400KG
Overall dimension 2060*1690*1900mm 3000 x1900 x1400mm 3000 x 2200 x 1400mm
